At a glance…

This node uses a Sacramento rainfall-runoff model to represent catchment inflows from a catchment of a fixed area. The model takes rainfall and potential evapotranspiration data and determines inflows. The Sacramento model has 17 parameters (including laguh) representing catchment characteristics.

[node.my_sacr_node]
type = sacramento
loc = 20, 30
area = 165
rain = data.rex_rain_csv.by_name.value
evap = data.rex_mpot_csv.by_name.value
params = 0,45,60,0.01,0.01,150,0,0.11,1.5,0,0.2,0.01,25,0.2,47,15,0.1
ds_1 = my_other_node

Node properties

Property Description
[node.?] (compulsory) Start of node declaration. This says we are creating a node, and also defines the name of the node. Node naming conventions are discussed at . Example: [node.my_sacr_node]
type (compulsory) The node type, which is “sacramento” in this case. type = sacramento
loc (compulsory) The location of the node in cartesian coordinates. Example: loc = 20, 30
area (compulsory) The catchment area [km2]. Example area = 165
rain (compulsory) Rainfall data [mm]. Example: rain = data.rex_rain_csv.by_name.value
evap (compulsory) Potential evapotranspiration data [mm]. Example: rain = data.rex_mpot_csv.by_name.value

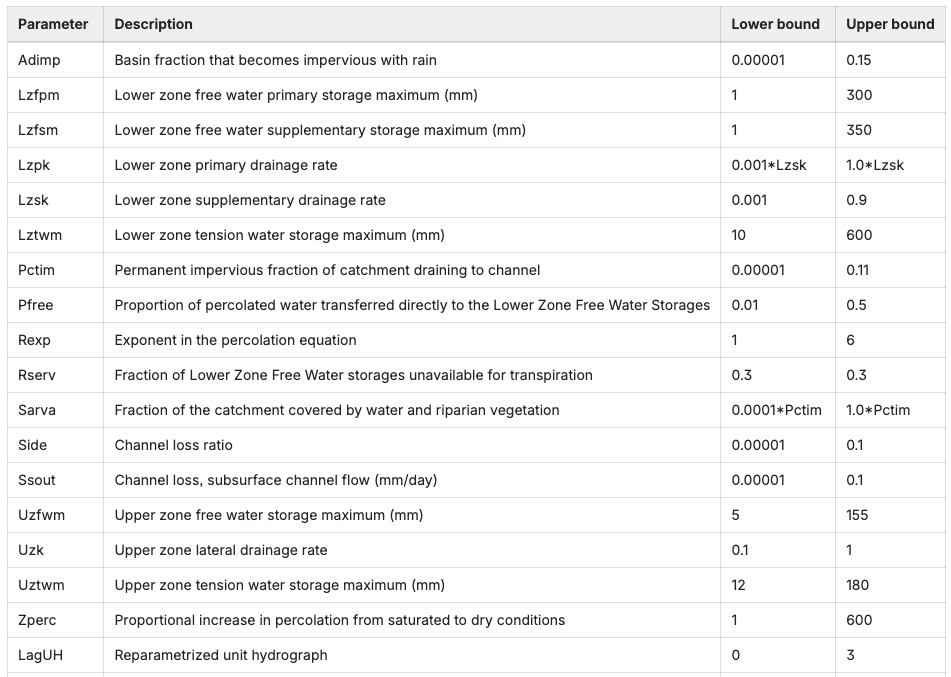

params (compulsory) The Sacramento model parameters: adimp, lzfpm, lzfsm, lzpk, lzsk, lztwm, pctim, pfree, rexp, sarva, side, ssout, uzfwm, uzk, uztwm, zperc, laguh Example: params = 0, 45, 60, 0.01, 0.01, 150, 0, 0.11, 1.5, 0, 0.2, 0.01, 25, 0.2, 47, 15, 0.1
ds_1 (optional) Name of the downstream node. This property defines a downstream link. Gr4j nodes may only have 1 downstream link. Example: ds_1 = my_other_node

Results associated with this node

Result Description
dsflow Downstream flow [ML]
usflow Upstream flow [ML]
ds_1 Downstream flow on link ds_1 [ML]
ds_1_order Order on link ds_1 [ML]
runoff_volume Catchment runoff volume from Sacramento model [ML]
runoff_depth Catchment runoff depth from Sacramento model [mm]
rain Input rainfall [mm]
evap Input evapotranspiration [mm]
flosf Internal flux component - surfaceflow [ML]
floin Internal flux component - interflow [ML]
flobf Internal flux component - baseflow [ML]
roimp Internal flux component - impervious runoff [ML]

How the node works

The sacramento node adds inflows from a Sacramento rainfall-runoff model (Burnash, 1973) to the system. The downstream flow is therefore

dsflow=usflow+runoff\_volume

Parameters for soil moisture and Stores

  • UZTWM (Upper Zone Tension Water Maximum): Defines the maximum capacity of the upper soil zone to hold water under tension.

  • UZFWM (Upper Zone Free Water Maximum): Represents the maximum capacity of the upper zone to hold free water.

  • LZTWM (Lower Zone Tension Water Maximum): The maximum capacity for tension water in the lower soil zone.

  • LZFSM (Lower Zone Free Water Maximum for Soil): Maximum capacity for free water in the lower zone soil.

  • LZFPM (Lower Zone Free Water Maximum for Percolation): Maximum capacity of the lower zone's free water that influences percolation.

  • RSERV (RSERV parameter): Not always optimised due to its low sensitivity, this parameter is generally the amount of water in the lower zone's free water stores that isn't available for transpiration.

Parameters for Flow Rates and Percolation

  • LZPK, LZSK, UZK: These depletion coefficients determine the rate at which water discharges from the free water storages in the upper and lower zones.

  • PFREE: Controls the percolation rate of water from the upper zone to the lower zone.

  • REXP (Percolation exponential factor): Modifies the rate of water percolation from the upper to the lower zone.

  • ZPERC: Another parameter influencing the percolation of water from the upper to the lower free water stores.

Parameters for Runoff and Losses

  • PCTIM (Percent Impervious): The proportion of the catchment that is considered an impervious area, which generates quick runoff.

  • ADIMP (Impervious Area Delay): Influences the time delay for runoff from the impervious area.

  • SIDE: A parameter related to channel side losses.

  • SSOUT: Represents losses from the surface storage.

  • SARVA: A parameter for losses from the system.

Parameters for Runoff Routing

  • LagUH is a single-value reparameterisation of the five original unit hydrogrpah parameters UH1 -UH5. This represents the shape of the unit hydrogrpah which is used to route instantaneous runoff through the system allowing for delays in the runoff process.

References

Burnash, R. J. (1973). A generalized streamflow simulation system: Conceptual modeling for digital computers. US Department of Commerce, National Weather Service, and State of California, Department of Water Resources.
